More than 50,000 hours life span

5 Year Warranty

Colour consistency with <3 SDCM

Technical Data

Light SourceSMD2835 Bridgelux
CCT3000K/4000K
Tunable White as Request
Supply Voltage220 – 240 V
Mains Frequency50/60 Hz
SDCM<3
Lifetime (L70/B10)50,000 hours
CRI80/90
MaterialPC Diffuser + Aluminium
Microprismatic PC diffuser + Aluminium
UGR<19/22
IP RatingIP20/40

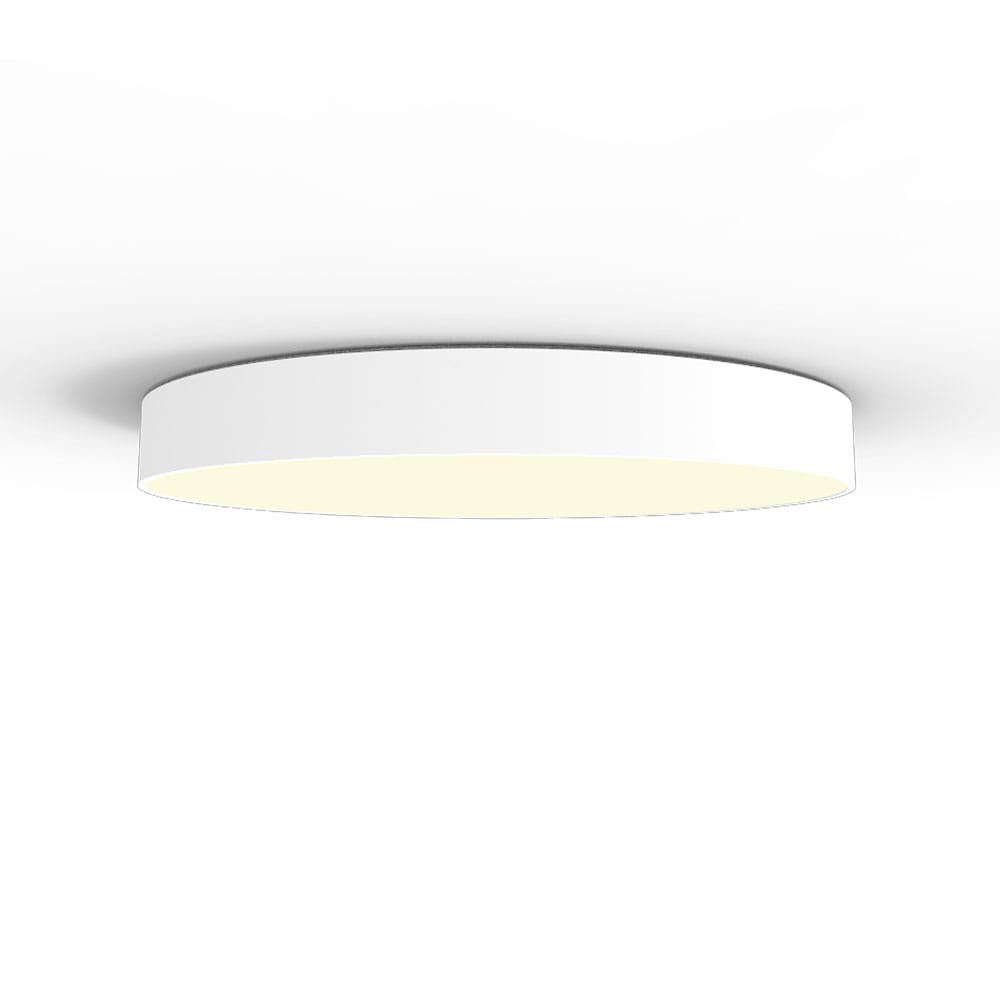

Mounting MethodSurface (Standard)

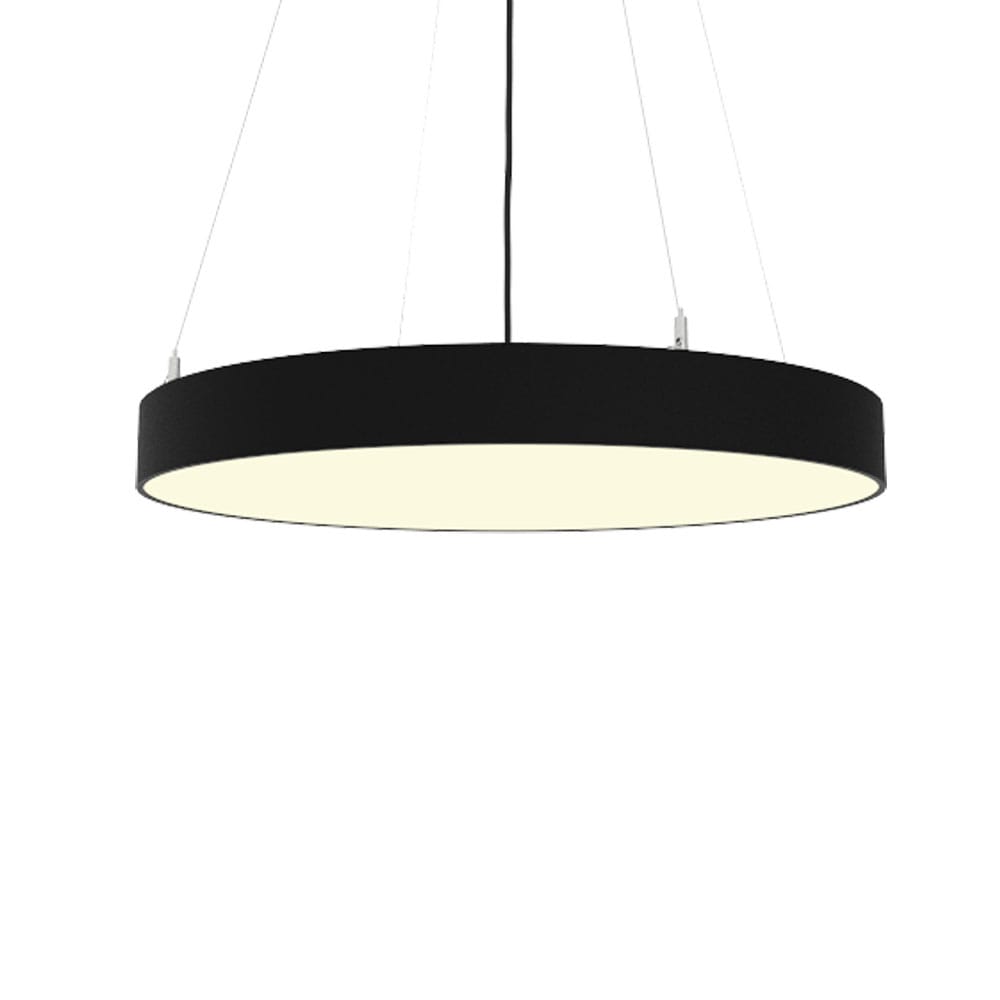

Suspended with Wires
Protective ClassClass 1
Finished ColorSand White/Black (Standard)
RAL Color as Request
Impact Resistance (IK)IK07
Warranty5 Years
CertificationUKCA, CE, ROHS
Power Factor0.9
Operating Temperature-25 +60°C

Lighting Specifications

Model No.Size (mm)Power (w)Lumen (lm)
DL3023Ф250×6524W2400
DL3024Ф300×6530W3000
DL3025Ф350×6536W3600
DL3027Ф450×6548W4800
DL3030Ф600×6560W6000
DL3034Ф900×6580W8000
DL3035Ф1000×6590W9000
DL3037Ф1200×65120W12000
